Kit de fer à souder électronique Pistolet à souder numérique LCD 80 W avec interrupteur marche/arrêt Température réglable et rapide Outil de soudage thermostatique à chauffage rapide HD

Product Description

1:The 80W soldering iron equipped with inner-heated ceramic technology,heats up quickly,high temperature stability.

2:The soldering iron with high definition LCD screen display, you can know the temperature more clearly.

3:There are power switch button and independent temperature adjustment button on the soldering iron,so it is easily and freely to turn on/off or adjust the temperature that you need.

4:Unique no-slip soft rubber handle for safe soldering and max comfort

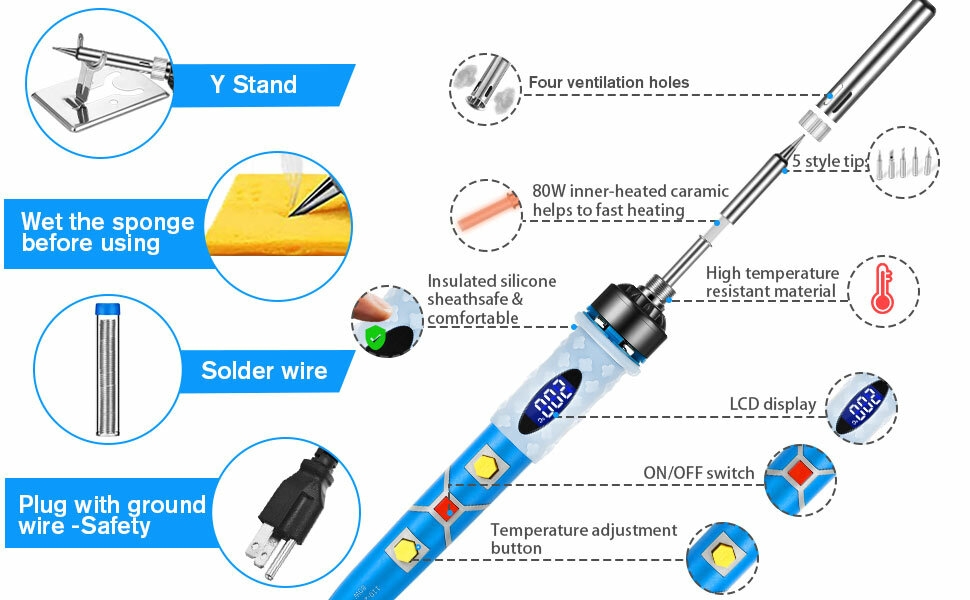

Package Included:

Soldering Iron x 1

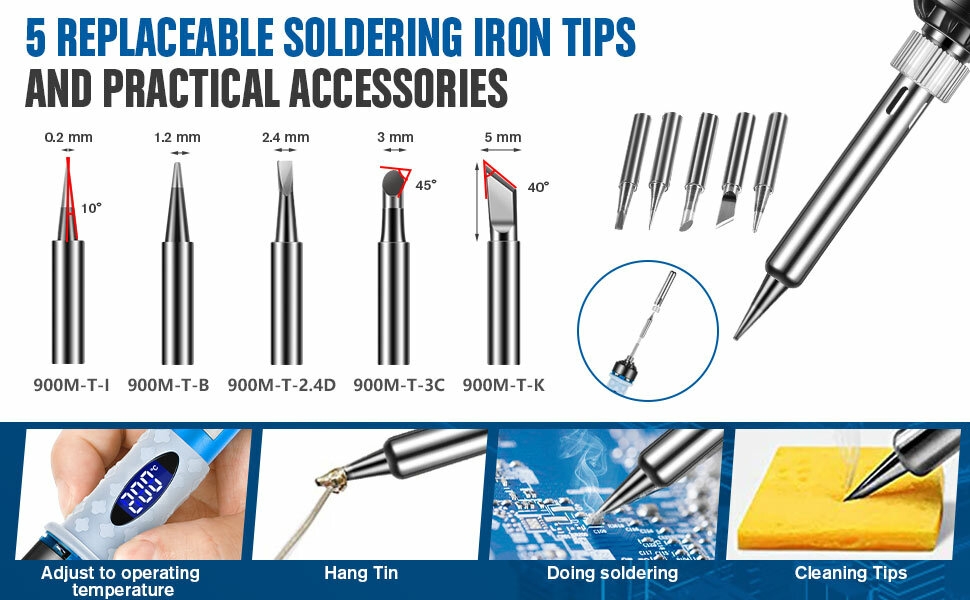

Different Soldering Iron Tips x 5

Soldering Wire x 1

"Y" Soldering Iron Stand x 1

Sponge x 1

Solder Steps

1:Depends on the materials you're joining and the kind of solder you used,adjust your soldering iron to the right temperature

2:Once your iron is heated to the right temperature,pick up the iron by the handle in one hand and hold a piece of solder in the other hand. Hold the hot iron to the place where the two metal components will meet for about a second to heat them up. You want to heat the metal parts, not the solder itself.

3:Touch the solder to the heated components. As the solder melts, it will flow into the gaps it needs to fill. Continue to feed in solder until a sufficient amount is melted. While you need enough to form a solid connection, you don't want to have too much solder either.

4:Allow the solder to cool on its own without any action.

5:Check the soldering joint for quality. A good connection will appear smooth, uniform and shiny. Make sure that aren't any problematic gaps between the components or globs of excess solder.

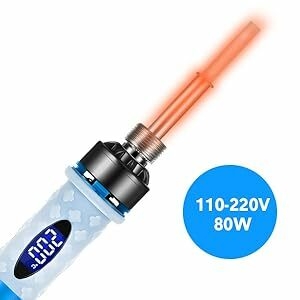

80W High Power Heating Core

Equipped with 80W heating core,heated up more quickly,delivers superior heat conductivity

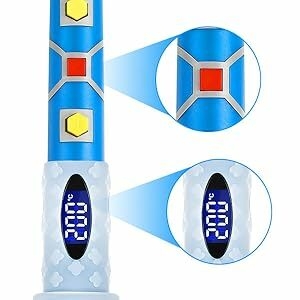

LCD Displa&Upgraded ON/OFF Switch

High definition LCD screen display,you can know the temperature more clearly.

With On/Off button and working indicator light, open,close and operate more conveniently and easily

Independent Temperature Adjustment Button

With independent temperature adjustment button,you can adjust temperature conveniently and easily

Tips

1.Please be careful when you are using the tools, and you’d better keep it somewhere kids can’t reach.

2.Please switch to the 392℉ model, when not using the pencil iron. And please do not keep the soldering iron working under high temperature.

3.When welding, do not use too much pressure. As long as the iron tip fully contact the solder joint, heat can be transferred.

4.To avoid oxidation, please clean soldering iron tip and "tin" all faces of tip with a coating of solder after using. If there is black oxide on the iron tip, please clean it by WET sponge firstly.
